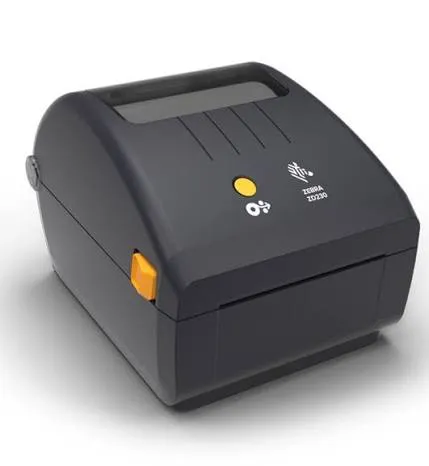

Zebra ZD230 Desktop Barcode Label Printer

Details

• System Overview: Reliable, entry-level 4-inch desktop barcode label printer designed for light manufacturing, transportation, logistics, retail, and healthcare environments.
• Print Technology: Available in both Direct Thermal (DT) and Thermal Transfer (TT) models.
• Print Performance: Print resolution of 203 dpi (8 dots/mm) with print speeds up to 6 inches per second (152 mm/s).
• Print Width & Length: Maximum print width of 4.09 inches (104 mm) and maximum print length of 39 inches (991 mm).
• Memory Architecture: Features 128 MB Flash and 128 MB SDRAM memory for fast job processing and storing fonts/graphics.
• Media Handling: OpenACCESS clamshell design for quick media loading, supporting label roll outer diameters up to 5 inches (127 mm).
• Ribbon Capacity (TT Model): Supports standard 74-meter (0.5-inch core) and high-capacity 300-meter (1-inch core) thermal transfer ribbons to reduce reload downtime.
• Interface & Connectivity: Standard USB 2.0 interface, with optional factory-installed Ethernet (LAN), Wi-Fi (802.11ac), and Bluetooth 4.1 configurations.
• Programming Languages: Supports ZPL II, EPL2, and XML command languages for drop-in replacement capability.
• User Interface: Simple single-button interface for Feed/Pause with a single LED status indicator light.
• Optional Accessories: Factory-installed label peeler or cutter options available.
• Physical Dimensions: Direct Thermal model measures 220 x 176 x 151 mm (1.1 kg); Thermal Transfer model measures 267 x 197 x 191 mm (1.7 kg)
